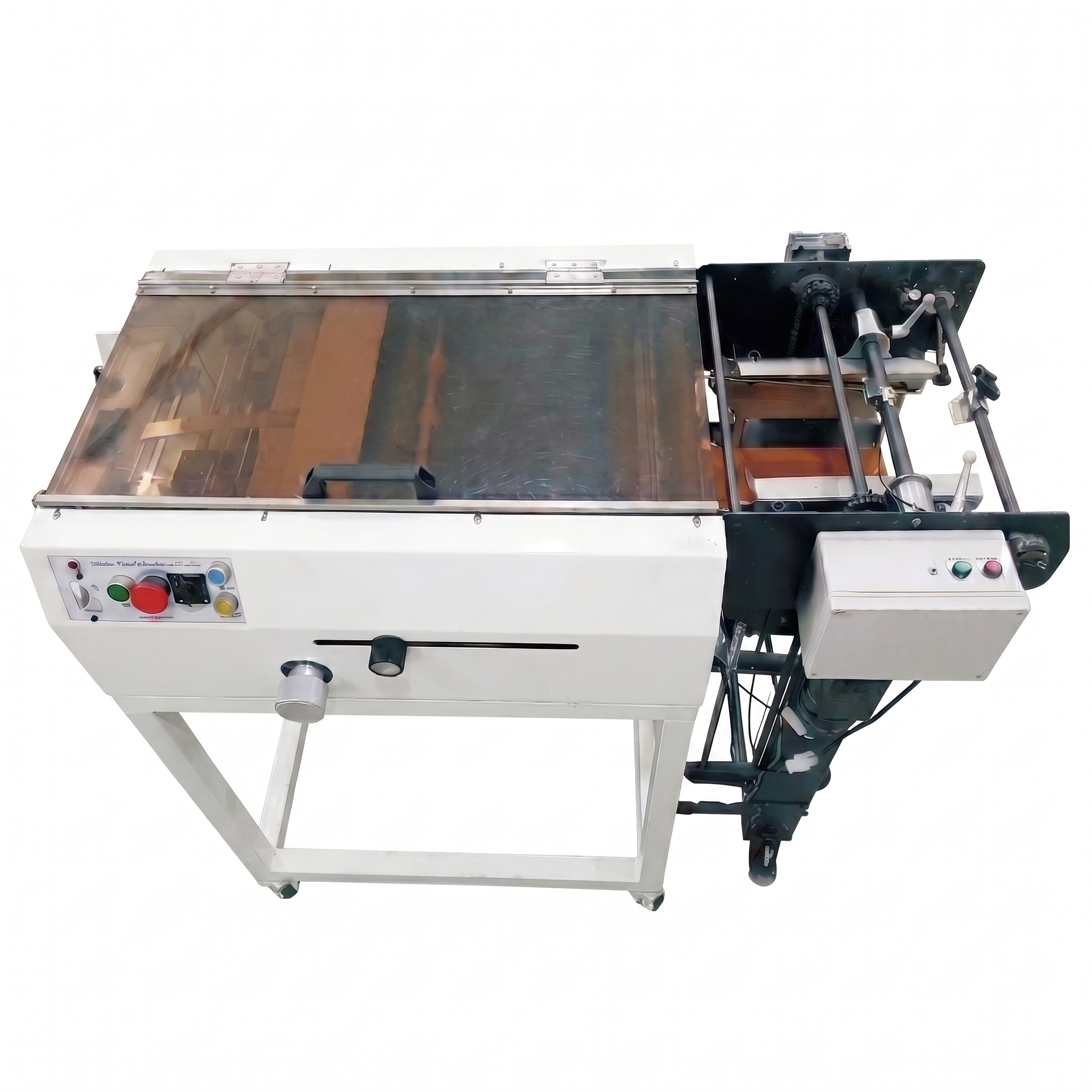

전 자동 점자용지 컷팅기
Automatic Braille Paper Cutter and Stacker with Shredder
Model : ABCS-824
- 주요기능
– 롤점자용지 커팅&자동적재&자뚜리잔재물분쇄등 일체형
– 커팅속도조절
– 버턴에 의한 점자용지가이드셋팅
– 개별 파트 구매 가능
- 사양
– 커팅속도(시간) : 1000~10000매
– 커팅 용지사이즈: 250mm
– 적재용지사이즈 : 가로 300x 세로 250mm
– 최대급지면적 : 가로90mm x 세로 50mm
– 최대적재높이 : 600mm
– 제어방식 : plc 을 이용한 자동제어
– 적재방식: 엘레베이터승강방식
– 중량 : 100kg
– 소비전력: 단상 AC 220V, 600W
- Main Features
– All-in-one system including roll braille paper cutting, automatic stacking, and scrap shredding
– Cutting speed adjustment
– Push-button braille paper guide setting
– Individual parts available for purchase
- Specifications
– Cutting Speed (per hour): 1,000 – 10,000 sheets
– Cutting Paper Size: 250mm
– Stacking Paper Size: W 300mm x L 250mm
– Maximum Feeding Area: W 90mm x H 50mm
– Maximum Stacking Height: 600mm
– Control Method: Automatic control using PLC
– Stacking Method: Elevator lifting system
– Weight: 100kg
– Power Consumption: Single-phase AC 220V, 600W
